Name: دستگاه C-Arm مدل Moonray DUAL - شرکت نوآوران درمان اطلس
SKU: 1005

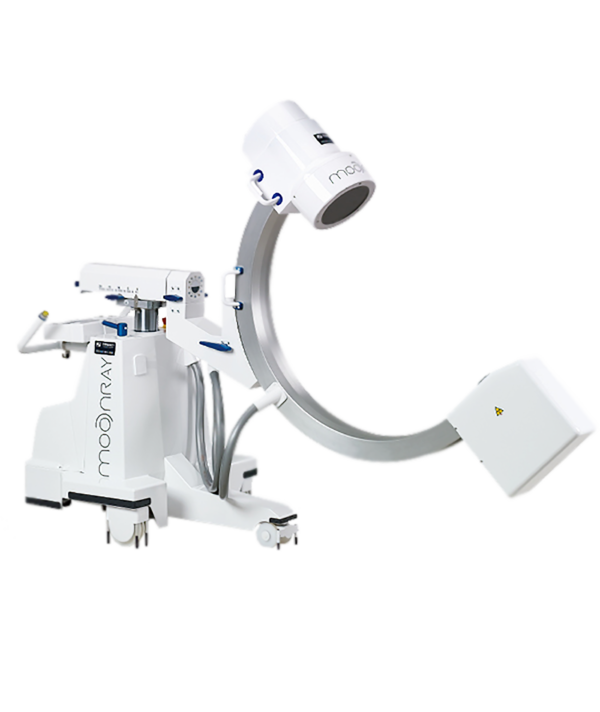

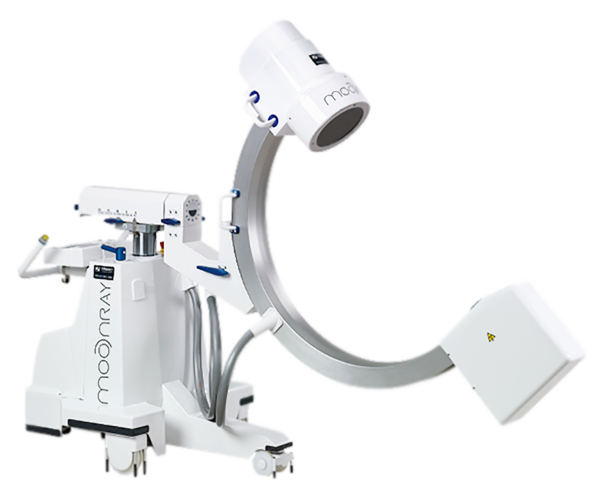

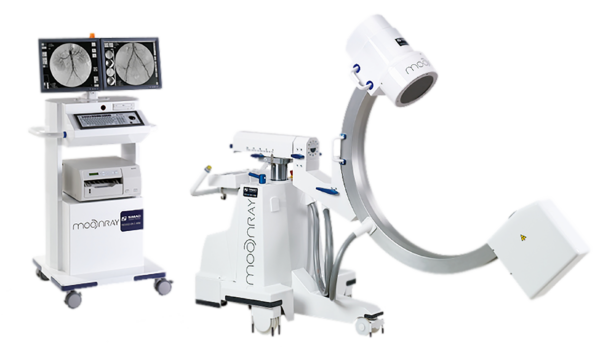

دستگاه C-Arm مدل Moonray DUAL ساخت کمپانی SIMAD ایتالیا، برای انواع جراحی ها مناسب است که با توجه به فناوری تصاویر آن و نیز مکانیک قابل اعتماد، می تواند بعنوانی یک مناسب برای هر موقعیتی در انواع جراحی مورد استفاده قرار گیرد. سیستم های SIMAD مجهز به تیوب های اشعه ایکس با آندهای دوار، با سرعت بالا، اتلاف حرارتی کم و کاهش نقطه کانونی هستند.

SKU: 1005 Categories: C-Arm, دستگاه رادیولوژی دیجیتال Tags: C-Arm, Moonray, SIMAD

Description

دستگاه C-Arm مدل Moonray DUAL ساخت کمپانی SIMAD ایتالیا است که طراحی و فناوری آن حاصل 30 سال تجربه میدانی در این زمینه بوده، برای انواع جراحی ها مناسب است و توانایی آن به عنوان یک نقطه مرجع برای انجام فعالیت های بالینی روزمره است. این دستگاه با توجه به فناوری تصاویر آن و نیز مکانیک قابل اعتماد، می تواند بعنوانی یک مناسب برای هر موقعیتی در انواع جراحی مورد استفاده قرار گیرد. تعادل دقیق بازوی C شکل آن و طراحی بهبود یافته قاب پایه آن و وزن سبک آن، Moonray DUAL را قادر می سازد که به راحتی و در هر جهت مورد نیاز جراح قرار گیرد.
سیستم های SIMAD مجهز به تیوب های اشعه ایکس با آندهای دوار، با سرعت بالا، اتلاف حرارتی کم و کاهش نقطه کانونی هستند که از نقطه کانونی 0.3 میلی متر در فلوروسکوپی و نقطه کانونی 0.6 میلی متر در رادیوگرافی استفاده می شود.

Additional information

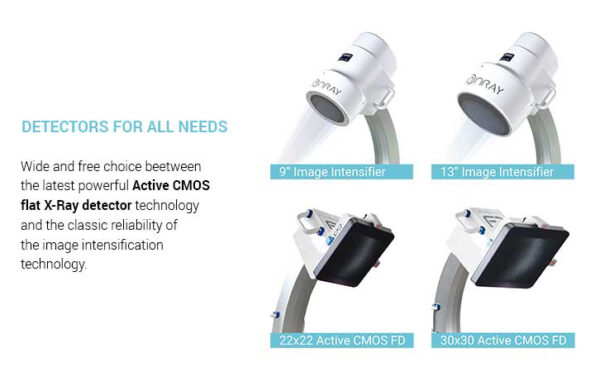

Active CMOS FD	30×30 Active CMOS FD: 1952 x 1952 pixel Line rate: 70 linee/cm Ratio: 17:1 22×22 Active CMOS FD: 1416 x 1416 pixel Line rate: 70 linee/cm Ratio: 17:1
Image Intensifier	13” Image Intensifier: 1k x 1k CCD camera at 30 fps Line rate: 70 linee/cm Ratio: 17:1 9” Image Intensifier: 1k x 1k CCD camera at 30 fps Line rate: 70 linee/cm Ratio: 17:1
Rotating Anode	at high speed, high thermal dissipation and reduced focal spot. • Focal spot 0.3 mm in fluoroscopy • Focal spot 0.6 mm in radiography
High Dissipation System (HDS)	Simad x-ray medical technology has designed, developed and created HDS™ which represents a new approach to improve heating dissipation due to x-ray exposures. Components involved are made of very conductive materials (Al) and all coupling interfaces provide low thermal impedance. Heating runs through a dedicated dissipation channel, and exchange surface is appreciably increased. 25% increase in working time & 25% reduction in cooling time
ILXPLUS	ILXPLUS is our brand-new hardware option* to have an integrated liquid cooling system at active high dissipation. It has been designed and developed to ensure long time x-ray emissions that often occur in interventional radiology, such as vascular applications in particular. We achieved this technical feature keeping in mind to have it into an extremely contained dimension. The monobloc size remains therefore perfectly compatible with typical operating tables used in the OR and X-ray room. The great technological advantage of ILXPLUS is applicable on the whole range of our Moonray Systems. No matter which model you choose.

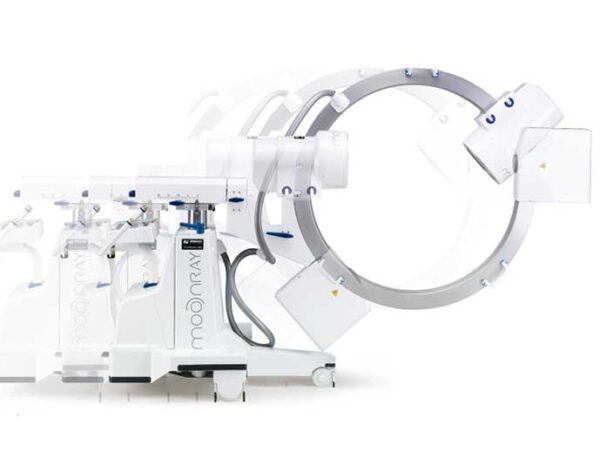

The lightest experience of handling	Precise counterbalancing of the “C” and improved design of the base frame, make Moonray Systems exceptionally lightweight during the positioning. One handle for all directions Moonray Systems positioning is precise and very smooth. Rear wheel orientation allows movement in any direction. The unique ergonomic steering handle allows parallel movement for easy positioning alongside operating table.
Two connectors ’ cable	Facilitates system handling and moving. Easy to replace in case of damage.
Smart Cable 2C Option	Double connection cable with fast release between C-arm unit and image detector. A simple idea with many advantages. • Easy replacement Simple replacement easily performed by the user if needed. • Machine downtime reduction Replacement is very quick and the activity can be continued immediately. • Operating costs reduction. Service call not necessary.
Extremely smooth and easy-cleaning surface	The special coating technique based on the automotive industry processes, gives to our products’ surfaces an extraordinary durability, and thanks to its mirrorlike ﬁnishing an accurate and easy cleaning is guaranteed.

Reviews

There are no reviews yet.

Be the first to review “دستگاه C-Arm مدل Moonray DUAL”

The Moonray DUAL C-Arm, made by the Italian company SIMAD, is suitable for all types of surgeries, and due to its imaging technology and reliable mechanics, can be used as a suitable device for any situation in a variety of surgeries. SIMAD systems are equipped with x-ray tubes with rotating anodes, at high speed, high thermal dissipation and reduced focal spot.

SKU: 1005 Categories: C-Arm, Digital radiology device Tags: C-Arm, Moonray, SIMAD

Description

The Moonray DUAL C-Arm, made by the Italian company SIMAD, whose design and technology is the result of 30 years of field experience in this field, is suitable for all types of surgeries, and its ability is a reference point for daily clinical activities. Due to its imaging technology and reliable mechanics, this device can be used as a suitable for any situation in a variety of surgeries. The precise balance of its C-shaped arm and the improved design of its base frame and its light weight enable the Moonray DUAL to be easily and in any direction required by the surgeon.
SIMAD systems are equipped with x-ray tubes with rotating anodes, at high speed, high thermal dissipation and reduced focal spot, which uses a focal point of 0.3 mm in fluoroscopy and a focal point of 0.6 mm in radiography.

Additional information

Active CMOS FD	30×30 Active CMOS FD: 1952 x 1952 pixel Line rate: 70 linee/cm Ratio: 17:1 22×22 Active CMOS FD: 1416 x 1416 pixel Line rate: 70 linee/cm Ratio: 17:1
Image Intensifier	13” Image Intensifier: 1k x 1k CCD camera at 30 fps Line rate: 70 linee/cm Ratio: 17:1 9” Image Intensifier: 1k x 1k CCD camera at 30 fps Line rate: 70 linee/cm Ratio: 17:1
Rotating Anode	at high speed, high thermal dissipation and reduced focal spot. • Focal spot 0.3 mm in fluoroscopy • Focal spot 0.6 mm in radiography
High Dissipation System (HDS)	Simad x-ray medical technology has designed, developed and created HDS™ which represents a new approach to improve heating dissipation due to x-ray exposures. Components involved are made of very conductive materials (Al) and all coupling interfaces provide low thermal impedance. Heating runs through a dedicated dissipation channel, and exchange surface is appreciably increased. 25% increase in working time & 25% reduction in cooling time
ILXPLUS	ILXPLUS is our brand-new hardware option* to have an integrated liquid cooling system at active high dissipation. It has been designed and developed to ensure long time x-ray emissions that often occur in interventional radiology, such as vascular applications in particular. We achieved this technical feature keeping in mind to have it into an extremely contained dimension. The monobloc size remains therefore perfectly compatible with typical operating tables used in the OR and X-ray room. The great technological advantage of ILXPLUS is applicable on the whole range of our Moonray Systems. No matter which model you choose.
The lightest experience of handling	Precise counterbalancing of the “C” and improved design of the base frame, make Moonray Systems exceptionally lightweight during the positioning. One handle for all directions Moonray Systems positioning is precise and very smooth. Rear wheel orientation allows movement in any direction. The unique ergonomic steering handle allows parallel movement for easy positioning alongside operating table.
Two connectors ’ cable	Facilitates system handling and moving. Easy to replace in case of damage.
Smart Cable 2C Option	Double connection cable with fast release between C-arm unit and image detector. A simple idea with many advantages. • Easy replacement Simple replacement easily performed by the user if needed. • Machine downtime reduction Replacement is very quick and the activity can be continued immediately. • Operating costs reduction. Service call not necessary.
Extremely smooth and easy-cleaning surface	The special coating technique based on the automotive industry processes, gives to our products’ surfaces an extraordinary durability, and thanks to its mirrorlike ﬁnishing an accurate and easy cleaning is guaranteed.

Reviews

There are no reviews yet.

Be the first to review “Moonray DUAL C-Arm device”

دستگاه C-Arm مدل Moonray DUAL

Description

Additional information

Reviews

Related products

Papaya

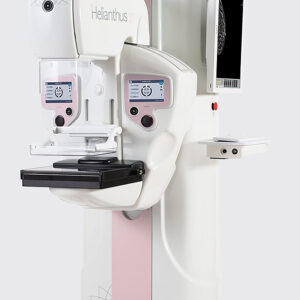

ماموگرافی دیجیتال هلیانتوس C
